Please select and order
€72.72
excl. VAT
CONFIGURE NOW
Norm

ÖNORM EN 4838-005

Issue date: 2019 11 15

Aerospace series - Arc fault circuit breakers, single-pole, temperature compensated, rated current 3 A to 25 A - 115 V a.c. 400 Hz Constant Frequency - Part 005: With polarized signal contact - Product standard

This document specifies the required characteristics for single-pole, arc fault circuit breakers rated currents from 3 A to 25 A, switching capacity 65 In, for use in air...
Read more
Valid
Publisher:
Austrian Standards International
Format:
Digital | 14 Pages
Language:
German | English | Download GER/ENG
Optionally co-design standards:
Committee 237: Aerospace
ICS
49.060
Topics
Electric & lighting engineering, Aircraft and space vehicle engineering - Electric equipment, Aerospace electric equipment and systems

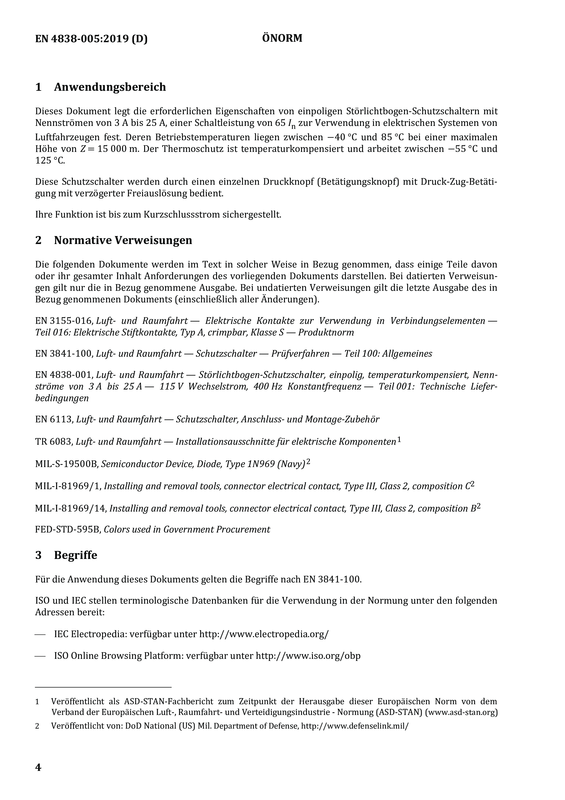

This document specifies the required characteristics for single-pole, arc fault circuit breakers rated currents from 3 A to 25 A, switching capacity 65 In, for use in aircraft electrical systems. Their operating temperatures are between - 40 °C to 85 °C at a maximum altitude of Z = 15 000 m. The thermal protection is temperature compensated and operates between - 55 °C and 125 °C. These circuit breaker are operated by a push-pull type single pushbutton (actuator), with delayed action "trip-free" tripping. They will continue to function up to the short-circuit current.
ÖNORM EN 4838-005
2019 11 15
Aerospace series - Arc fault circuit breakers, single-pole, temperature compensated, rated current 3...
Norm
↖
