Norm

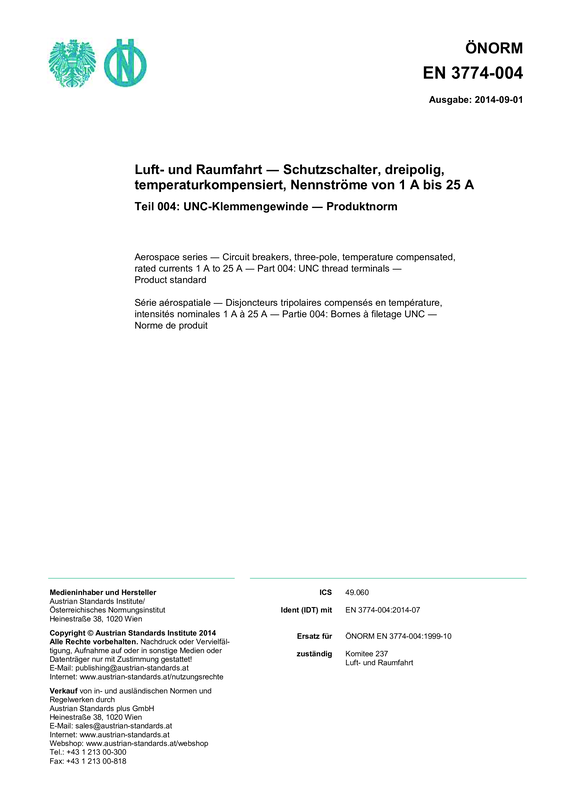

ÖNORM EN 3774-004

Issue date: 2014 09 01

Aerospace series - Circuit breakers, three-pole, temperature compensated, rated currents 1 A to 25 A - Part 004: UNC thread terminals - Product standard

This European Standard specifies the characteristics of three-pole circuit breakers, temperature compensated with a rated current from 1 A to 25 A, used in aircraft on-bo...

Valid

Publisher:

Austrian Standards International

Format:

Digital | 13 Pages

Language:

German | English

Optionally co-design standards:

Committee 237: Aerospace

ICS

49.060

Topics

Electric & lighting engineering, Aircraft and space vehicle engineering - Electric equipment, Aerospace electric equipment and systems

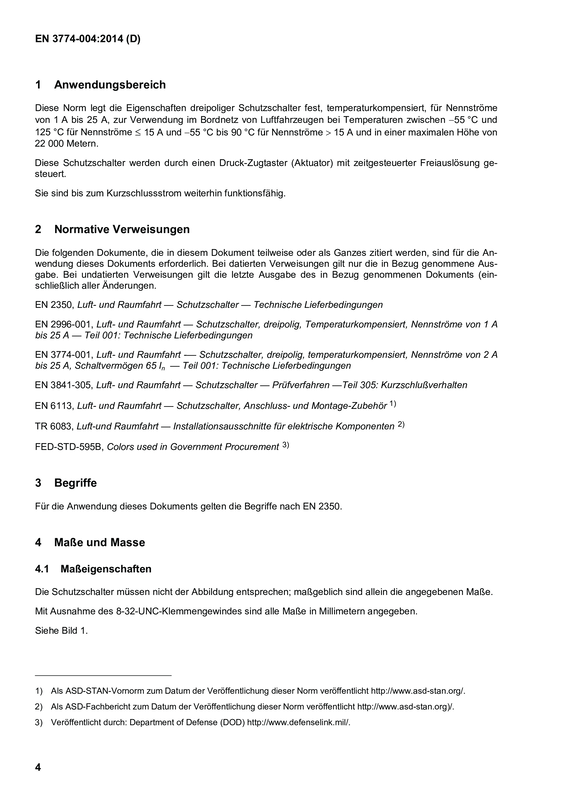

This European Standard specifies the characteristics of three-pole circuit breakers, temperature compensated with a rated current from 1 A to 25 A, used in aircraft on-board circuits at a temperature between - 55 °C and 125 °C for ratings less than or equal 15 A and - 55 °C to 90 °C for ratings > 15 A and at an altitude of 22 000 m max. These circuit breakers are operated by a push-pull type single pushbutton (actuator), with delayed action "trip-free" tripping. They will continue to function up to the short-circuit current.
